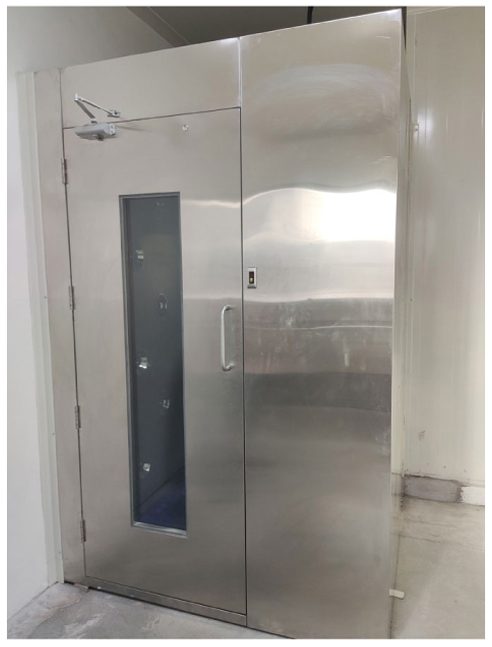

Air showers

Air Showers are self-contained chambers installed strategically at entrances to cleanrooms and other controlled environments. They minimize particulate matter entering or exiting the clean space to mitigate the risk of cross-contamination.

Personnel and materials entering or exiting the controlled environment are “scrubbed” with H14-filtered air by high-velocity air jets running at 18-30 m/s (3543-5906 fpm). Contaminated air is then drawn through the base within the unit, filtered, and recirculated.

Features

  • High-velocity shower jets running at 18-30 m/s to ensure efficient scrubbing action to remove particulate matter.
  • Operating modes can be programmed in the field.
  • The typical efficiency of H14 filter is 99.995% at 0.1 - 0.3 micron particles.
  • A disposable pre-filter with 85% air resistance extends the life of the main filter.
  • An emergency stop button is mounted on both sides of the shower.
  • Indicator lights mounted on both sides of the exterior of the air shower to regulate traffic flow

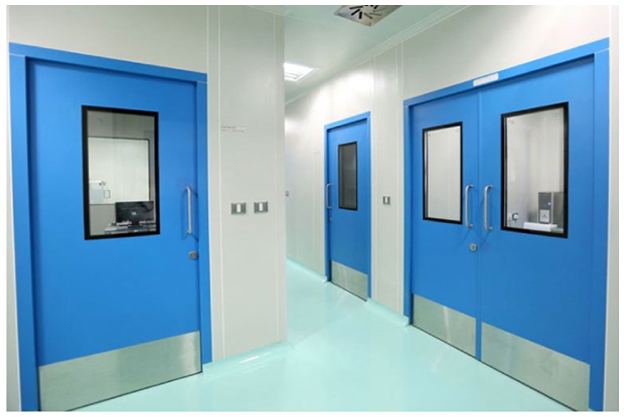

Cleanroom Doors

Bordered table dark

# DIFFERENT TYPES OF DOORS INFILL
1 Scientific Doors Fire Rated Doors Emergency Doors Sliding Doors Lead Doors Honey Comb Kraft PUF (Polyurethane Foam) Rock Wool

MOC

Thick flush doors made of 0.8 mm thick PU powder-coated GI sheet with honeycomb Kraft paper/PUF as infill/Rock Wool/Led, 1.2 mm thick GI powder-coated door frames, with provisions for double glazing glass and hardware such as push plate, door closure, SS D handle, SS ball bearing butt hinges, concealed tower bolt for the double door, Panic Bar, etc.

Different Types of Doors

  • Scientific Doors
  • Fire Rated Doors
  • Emergency Doors
  • Sliding Doors
  • Lead Doors
